REXROTH

0532002014 Pressure Relief Valve 50-300 BAR

The Bosch Rexroth 0532002014 pressure relief valve 50-300 BAR is a hydraulic pressure relief valve for limiting pressure in hydraulic systems. Bosch Rexroth technical data identifies this product family as pressure relief valves for line connection and block installation. The complete product identification should always be used for accurate procurement and replacement: 0532002014 / 50-300 BAR.

According to Bosch Rexroth RE 25 860 technical data, material number 0 532 002 014, commonly written as 0532002014, is listed under pressure relief valves for block installation. The official table identifies this version with M30 x 1.5 threaded port, adjustable pressure setting, NBR seals and a 50–300 bar pressure adjustment range. These details are important because similar Rexroth pressure relief valves may have different pressure ranges, seal materials, threaded ports or installation types.

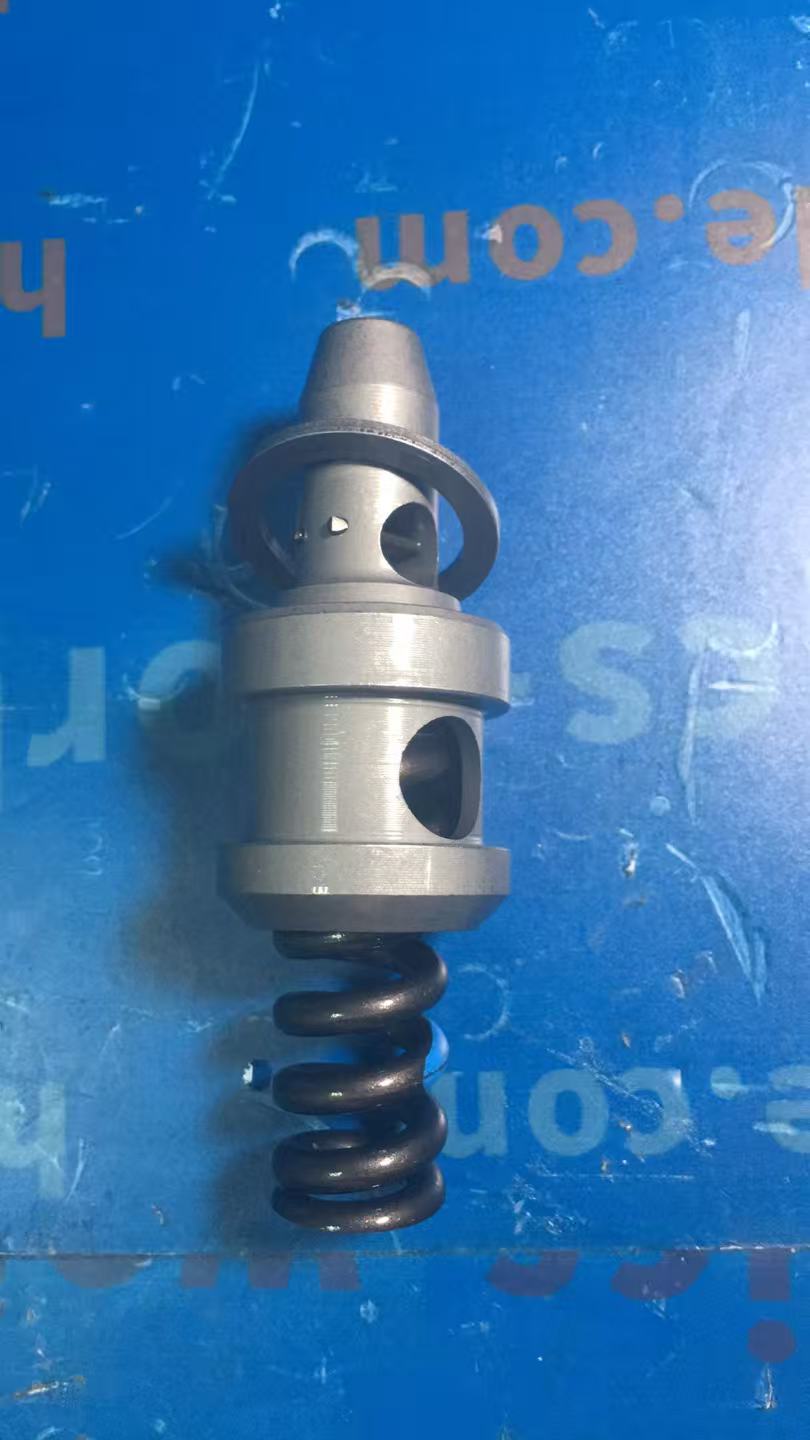

The Bosch Rexroth 0532002014 pressure relief valve is designed as part of a seat valve with damping product family. Bosch Rexroth describes the design as using a valve disk, valve seat and damping piston. The valve seat supports tight closure, while the damping piston helps prevent valve vibration. This design is intended to maintain a stable pressure relief characteristic as flow increases, helping the hydraulic system control pressure more reliably.

In a hydraulic circuit, a pressure relief valve protects the system by opening when the pressure reaches the adjusted value. When pressure is below the set value, the valve remains closed. When the pressure reaches the set range, the valve opens and allows hydraulic oil to discharge toward the return side or tank path, depending on the manifold or block design. This protects pumps, actuators, hoses, manifolds and other hydraulic components from excessive pressure.

The official Bosch Rexroth data for this valve family lists maximum pressure of 350 bar and maximum flow of 120 l/min. These are product-family reference values and should be checked against the actual hydraulic circuit, block installation design, set pressure, flow rate, counter pressure, hydraulic fluid and operating temperature before replacement. For this specific item, the key confirmed purchasing details remain 0532002014, 50–300 bar, M30 x 1.5, adjustable and NBR seals.

The 0532002014 pressure relief valve 50-300 BAR can be used in hydraulic power units, mobile hydraulic systems, conveying equipment, agricultural machinery, municipal vehicles, industrial machines and general mechanical engineering applications where pressure limitation is required. Bosch Rexroth technical data lists applications including conveying and handling equipment, agricultural engineering, municipal vehicles and general mechanical engineering.

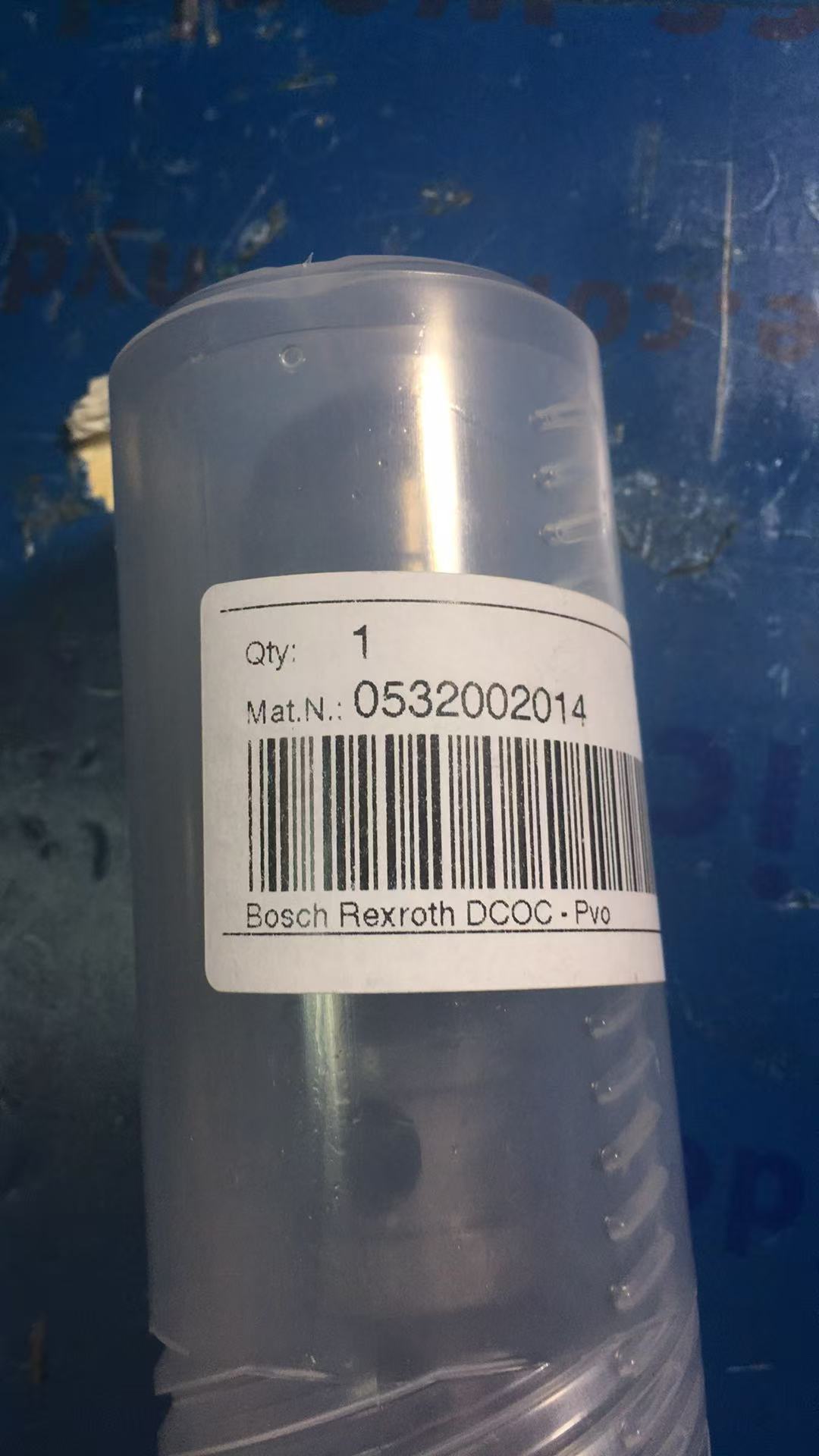

For procurement teams and maintenance engineers, the most important purchasing reference is the full Bosch Rexroth material number 0532002014 together with the pressure range 50-300 BAR. Short descriptions such as “Rexroth relief valve” or “50-300 bar valve” are not enough for accurate replacement. Similar Bosch Rexroth pressure relief valves may differ in pressure range, line or block installation type, threaded port, adjustment design, non-return valve option, seal material or special version.

Before ordering the Bosch Rexroth 0532002014 pressure relief valve 50-300 BAR, buyers should compare the existing valve marking, hydraulic block drawing, machine spare-parts list and pressure setting requirement. Important details to confirm include material number 0532002014, pressure range 50–300 bar, M30 x 1.5 threaded installation, adjustable version, NBR seal requirement and hydraulic circuit function. If the valve is installed in an existing hydraulic block, photos of the valve marking, thread side, adjustment side and manifold installation area can help confirm the correct replacement.

This product page is prepared for international buyers who need a clear purchasing reference for Bosch Rexroth material number 0532002014. If this pressure relief valve is required for urgent downtime repair, scheduled maintenance or spare-parts stock, please provide the required quantity, destination country and preferred delivery term when sending an inquiry. If a preset pressure, certificate, country-of-origin document or special packing requirement is needed, it should be stated during quotation.

Hydraulics Worldwide supplies hydraulic valves, pumps and industrial spare parts for global customers. If you are sourcing the Bosch Rexroth 0532002014 pressure relief valve 50-300 BAR, send us the material number, pressure range and quantity for quotation support. You can also browse more hydraulic components from Hydraulics Worldwide or verify the manufacturer reference on the Bosch Rexroth official product page.
