3DREP 6 C-2X=25EG24N9K4/M=00 Valve R900956101

The 3DREP 6 C-2X valve, full Bosch Rexroth model 3DREP 6 C-2X=25EG24N9K4/M=00, material number R900956101, is a direct-operated proportional pressure reducing valve used for hydraulic pressure control. It belongs to the Bosch Rexroth 3DREP series, which is designed to convert an electrical input signal into a proportional hydraulic pressure output signal. This makes the valve suitable for hydraulic systems that require controlled pressure regulation rather than simple on/off switching.

The complete model code 3DREP 6 C-2X=25EG24N9K4/M=00 is important for correct product identification. The 3DREP series refers to a proportional pressure reducing valve with external control electronics. The size 6 design is used for compact hydraulic control circuits, manifolds and subplate-mounted valve assemblies. The C version identifies the hydraulic function version within the 3DREP family, while the rest of the code defines the electrical, connector, override and seal configuration. For procurement and replacement work, the full model and material number must be checked together: 3DREP 6 C-2X=25EG24N9K4/M=00 / R900956101.

According to Bosch Rexroth technical data for the 3DREP valve family, this series is a direct-operated 3-way proportional pressure reducing valve with proportional solenoids. The proportional solenoids are wet-pin DC solenoids with central thread and removable coil. For type 3DREP, the solenoids are controlled by external electronics, so the related amplifier or control electronics should be confirmed separately when replacing a valve in an existing system.

During operation, the valve receives an electrical command signal and converts it into a proportional hydraulic pressure output. When a solenoid is energized, the control spool moves in proportion to the electrical input signal. This movement opens the required hydraulic flow paths through controlled cross-sections and allows the pressure to follow the command value. When the solenoid is de-energized, spring force returns the control spool toward its center position. This operating principle supports repeatable pressure control in electro-hydraulic systems.

The 3DREP 6 C-2X=25EG24N9K4/M=00 valve is relevant for industrial machines where pressure needs to be adjusted by an electrical signal. Typical use cases include hydraulic presses, forming machines, test equipment, machine tools, production machinery and hydraulic power units that require controlled pressure reduction. Because proportional valves are part of the control system, the valve should not be selected only by appearance. The nameplate, hydraulic schematic, electrical control configuration and original spare-parts list should all be checked before ordering.

For buyers, the key purchasing reference is the full Bosch Rexroth model 3DREP 6 C-2X=25EG24N9K4/M=00 and the material number R900956101. Short descriptions such as “3DREP valve” or “Rexroth pressure reducing valve” are not enough for accurate replacement, because similar 3DREP valves may differ in pressure stage, function symbol, connector type, manual override, seal material or special version suffix. Providing the complete model code helps reduce the risk of purchasing a non-matching hydraulic valve.

The Bosch Rexroth 3DREP series is listed with size 6, maximum operating pressure of 100 bar and maximum flow of 15 l/min. The K4 electrical connection version is specified as a connector arrangement according to DIN EN 175301-803 without mating connector. These details should be reviewed together with the machine requirements, hydraulic fluid, operating temperature and existing control electronics. If the old valve has a slightly different suffix or special version code, direct interchangeability should be confirmed before purchase.

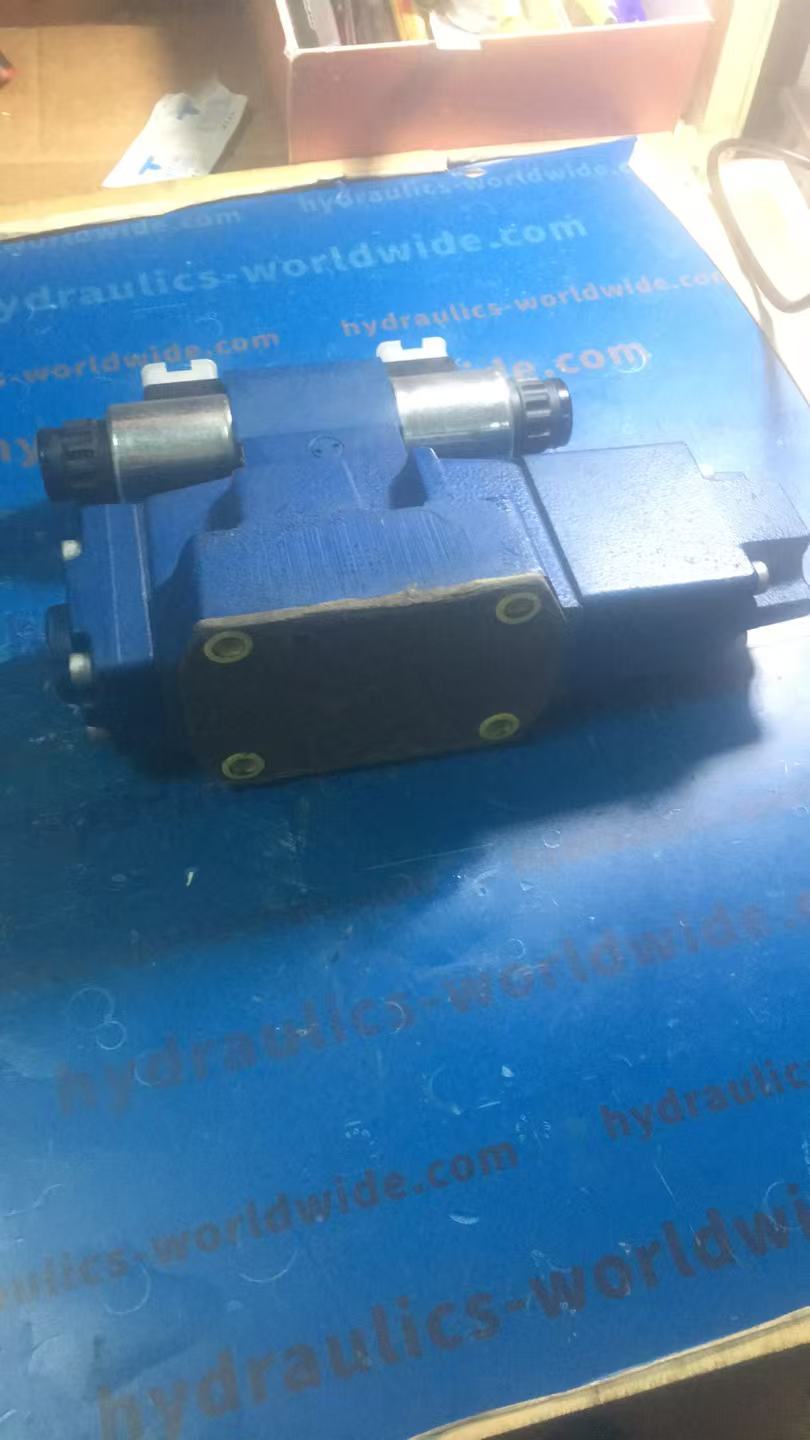

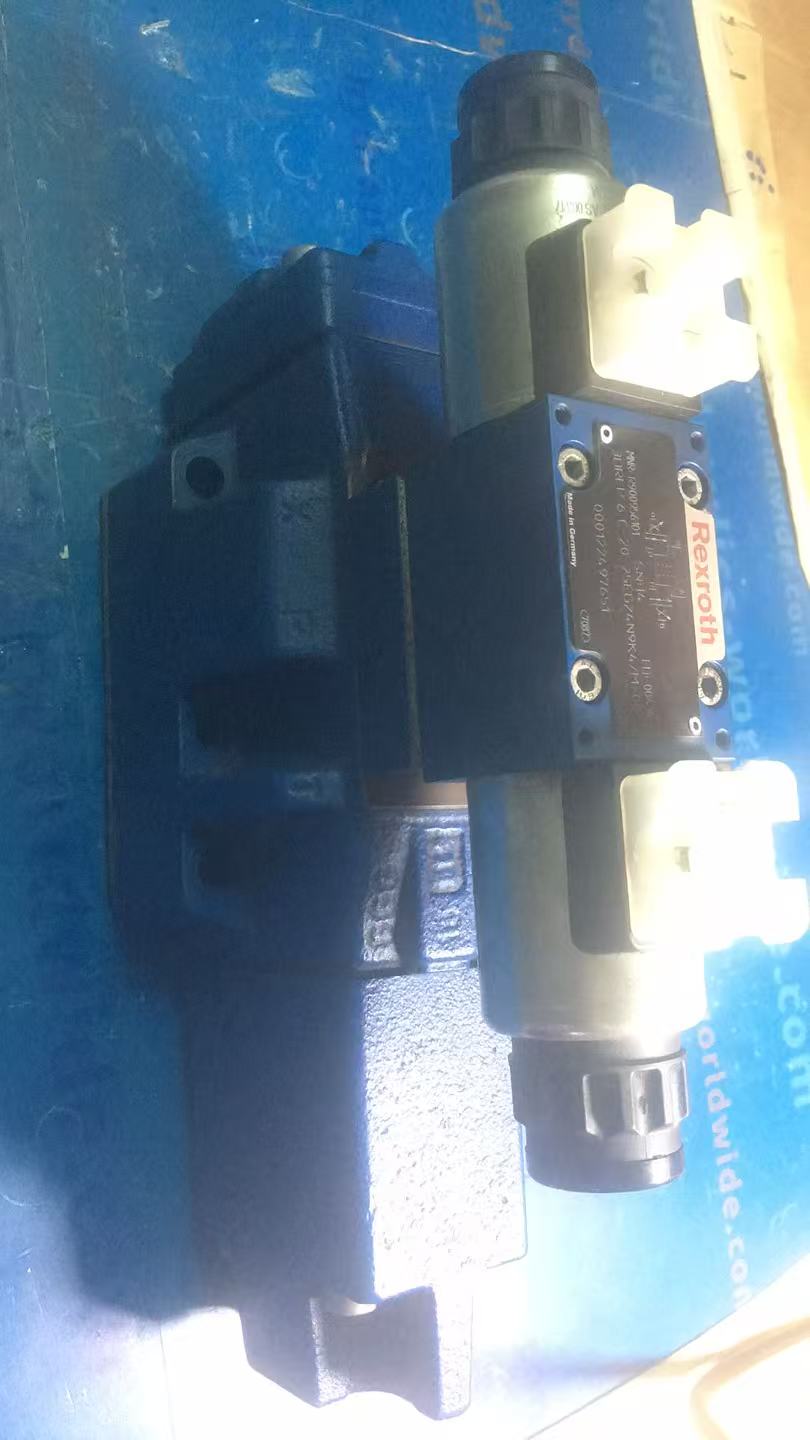

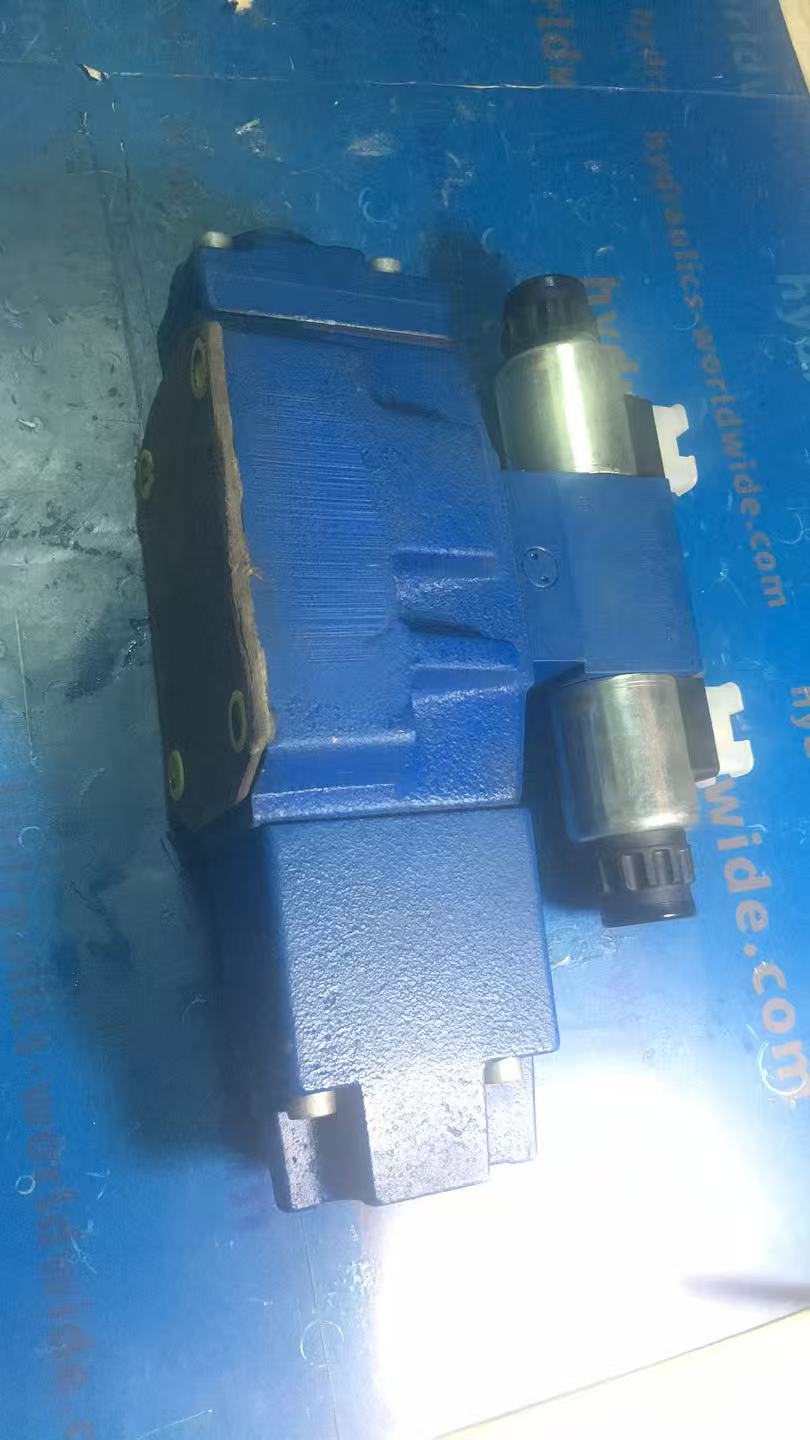

This product page is prepared for maintenance engineers, hydraulic service companies, OEM spare-parts departments and international procurement buyers who need a clear reference for Bosch Rexroth R900956101. If the valve is needed for urgent machine downtime, it is recommended to send the full model code, quantity, destination country and photos of the valve nameplate. Photos of the connector side and installed manifold can also help confirm the configuration.

Hydraulics Worldwide supplies hydraulic valves, pumps and industrial spare parts for global customers. If you are sourcing the 3DREP 6 C-2X=25EG24N9K4/M=00 valve R900956101, send us the required quantity and delivery destination for quotation support. You can also browse more hydraulic components from Hydraulics Worldwide or verify the manufacturer reference on the Bosch Rexroth official product page.
