PGF2-2X/008RE01VE4 Internal Gear Pump R900932266

The Bosch Rexroth PGF2-2X/008RE01VE4 internal gear pump, material number R900932266, is a fixed-displacement hydraulic pump for reliable hydraulic flow supply in industrial and mobile hydraulic systems. Bosch Rexroth official Store identifies this item as INTERNAL GEAR PUMP PGF2-2X/008RE01VE4. For accurate purchasing and replacement, the complete model and material number should always be used together: PGF2-2X/008RE01VE4 / R900932266.

According to Bosch Rexroth PGF technical data, PGF pumps are gap-compensated internal gear pumps with constant displacement. The PGF series is designed for low operating noise, low flow pulsation, high efficiency even at low viscosity and long service life through plain bearings and sealing gap compensation. The official Bosch Rexroth product information for this item also highlights suitability for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation and use in open-circuit hydraulic applications.

The complete model code PGF2-2X/008RE01VE4 contains important configuration details. The PGF section identifies the Bosch Rexroth internal gear pump family. The 2 section indicates frame size 2. The 2X section indicates component series 20 to 29, with unchanged installation and connection dimensions within the same component series range. The 008 section identifies the displacement size class. The R code indicates clockwise rotation when viewed on the shaft end, and the E, 01, V and E4 sections define the shaft, port, seal and mounting or execution configuration for this ordered version.

The PGF2-2X/008RE01VE4 internal gear pump R900932266 should be selected by the full model code, not only by pump appearance. Similar Bosch Rexroth PGF2 pumps may have the same frame size but different displacement, rotation direction, shaft end, port connection, seal material, mounting flange or special version. Even a small difference in the suffix can affect installation compatibility and hydraulic system performance.

The operating principle of the Bosch Rexroth PGF internal gear pump supports quiet and stable hydraulic performance. The pinion shaft drives the internally toothed gear. During rotation, chamber volume increases on the suction side and hydraulic fluid flows into the pump. The segment assembly separates the suction chamber from the pressure chamber, and the fluid is displaced through the pressure channel as the teeth mesh again. This internal gear pump design helps reduce flow and pressure pulsation compared with many simpler gear pump designs.

The PGF design uses axial and radial compensation to maintain efficient sealing between rotating and fixed pump parts. This helps the pump achieve high efficiency, even when hydraulic fluid viscosity is low. Bosch Rexroth also describes the PGF series as suitable for a wide viscosity and speed range with excellent suction characteristics. These features make the Bosch Rexroth PGF2-2X/008RE01VE4 internal gear pump suitable for hydraulic systems where stable flow, low noise and reliable suction behavior are important.

This pump may be used in hydraulic power units, machine tools, production machinery, lifting equipment, mobile hydraulic systems, compact industrial equipment and other open-circuit hydraulic applications requiring a fixed-displacement internal gear pump. Because hydraulic pumps are sensitive to suction conditions, oil viscosity, pressure limitation, filtration and drive alignment, replacement should always be checked against the machine hydraulic schematic and Bosch Rexroth documentation.

For procurement teams and maintenance engineers, the key purchasing reference is the complete Bosch Rexroth model PGF2-2X/008RE01VE4 together with material number R900932266. Short descriptions such as “PGF2 pump” or “Rexroth internal gear pump” are not enough for accurate replacement. Buyers should confirm the full model code, material number, displacement size, rotation direction, shaft version, line connection, seal material and mounting configuration before ordering.

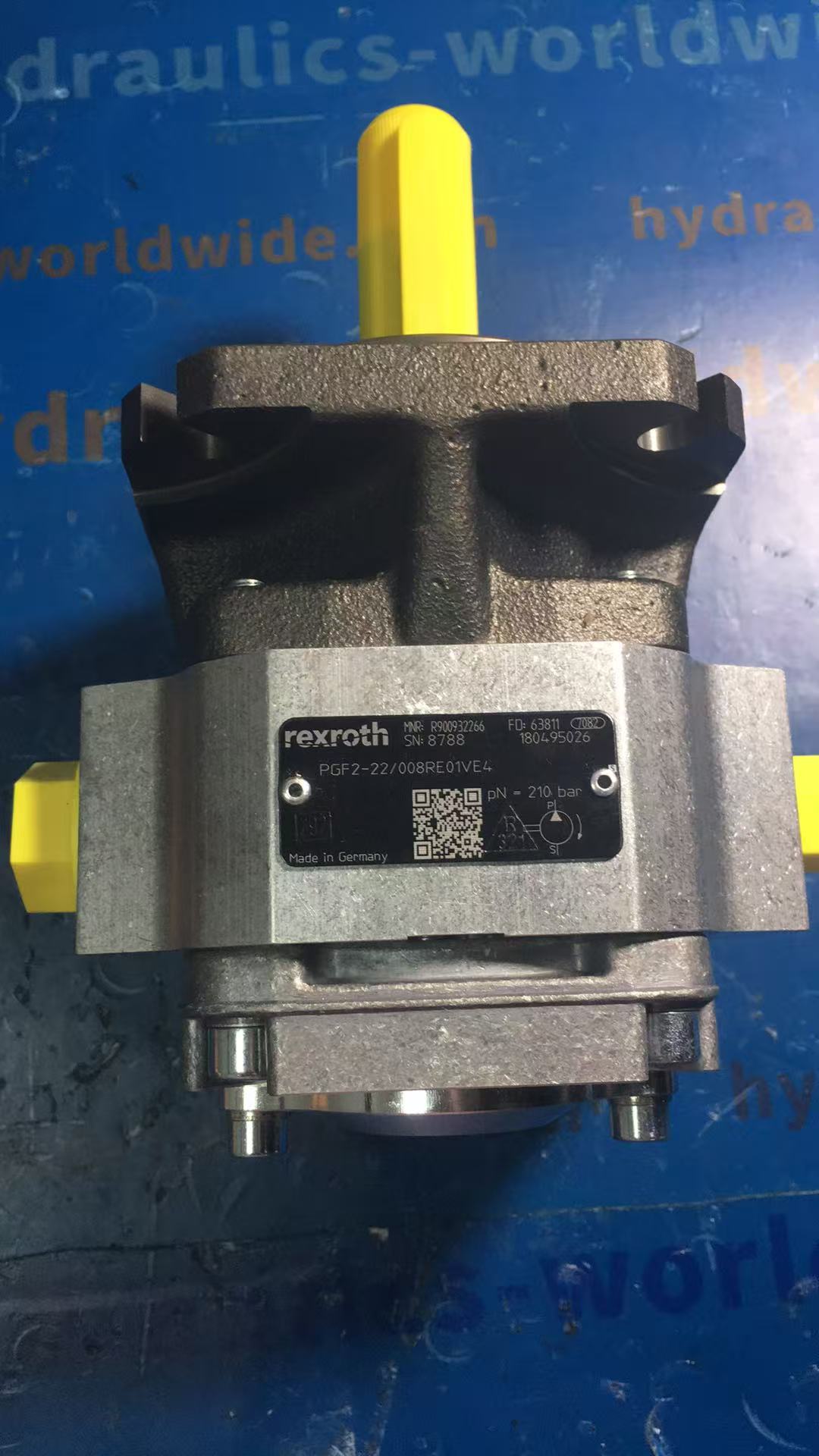

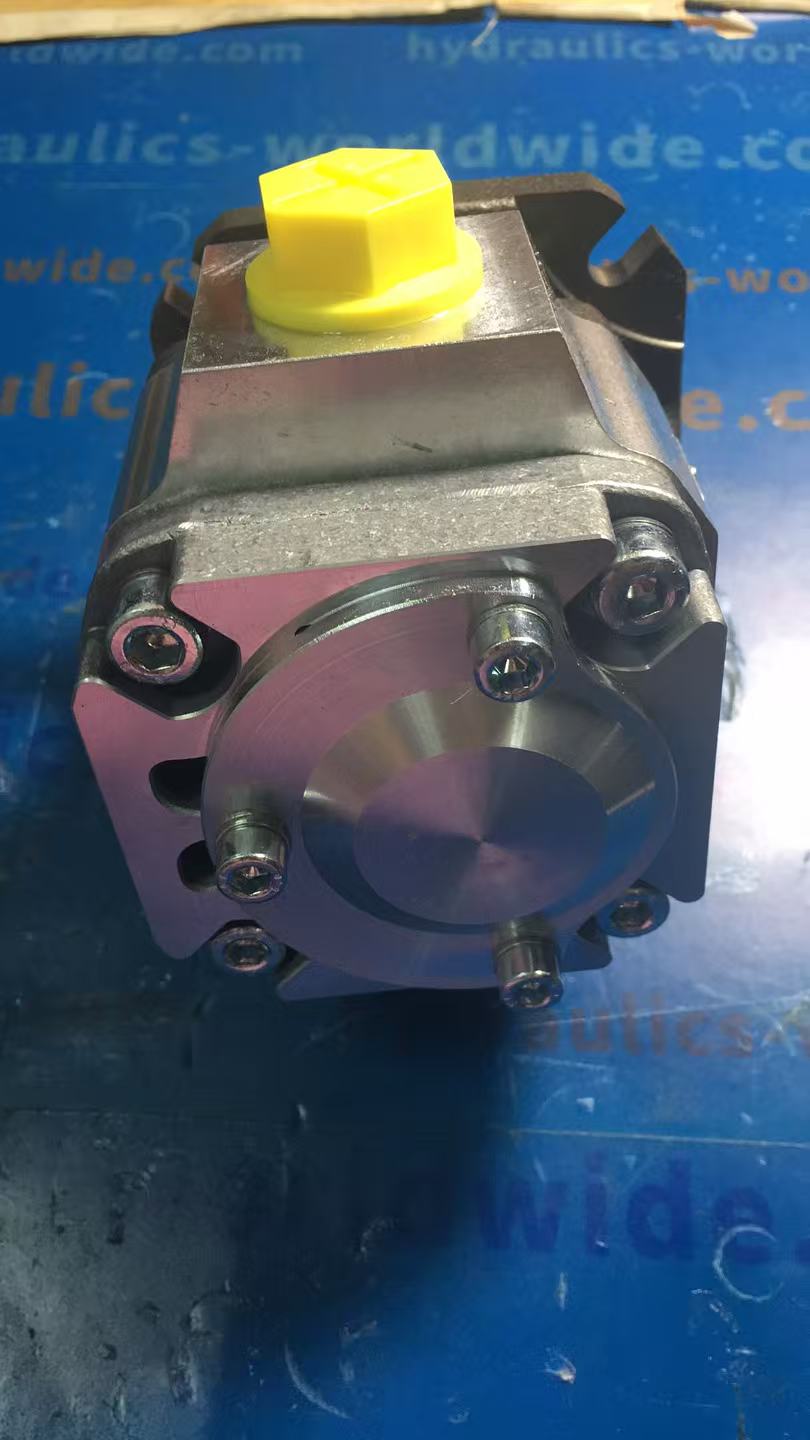

If this pump is required for urgent machine downtime, scheduled maintenance or spare-parts stock, clear identification is essential. Please provide the full model code, material number, required quantity, destination country and preferred delivery term when sending an inquiry. Photos of the pump nameplate, shaft side, port side and mounting flange can help confirm whether the requested PGF2-2X/008RE01VE4 internal gear pump matches the existing unit.

Hydraulics Worldwide supplies hydraulic pumps, valves and industrial spare parts for international customers. If you are sourcing the Bosch Rexroth PGF2-2X/008RE01VE4 internal gear pump R900932266, send us the full model code, required quantity and delivery destination for quotation support. You can also browse more hydraulic components from Hydraulics Worldwide or verify the manufacturer reference on the Bosch Rexroth official product page.
