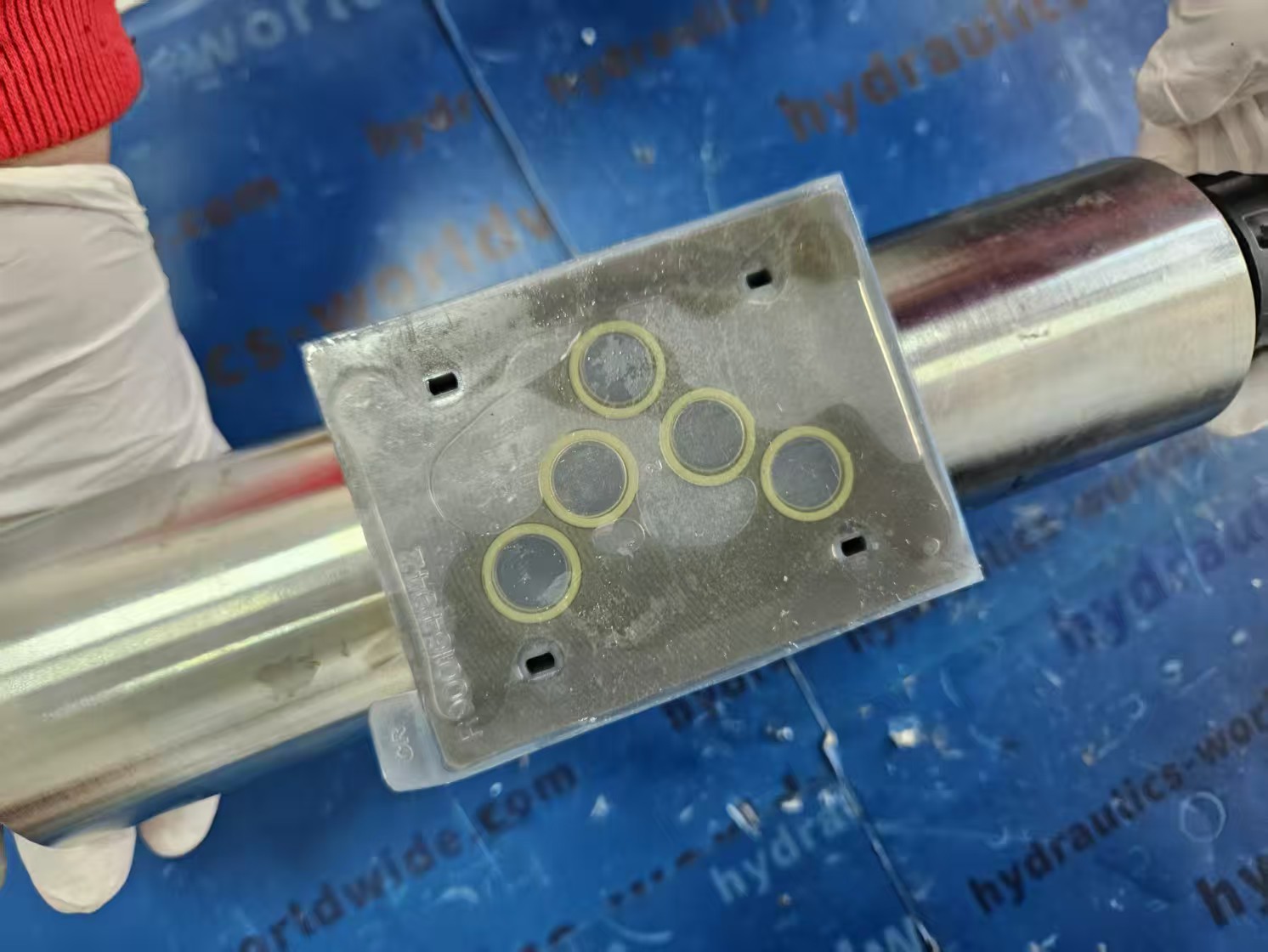

PROPORTIONAL DIRECTIONAL VALVE 4WRAE10W1-60-2X/G24N9K31/F1V R900949757
Product Attributes
| Attribute | Value |
|---|---|
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | 4WRA.6,10 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 75 |
| Spool symbol | Symbol W1 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 60 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Connectivity | Analog, command value 4…20 mA |
| Hydraulic fluid | HL, HLP, HLPD, HVLP, HVLPD, HETG,
HEES, HEPG, HFDU, HFDR |
| Seals | FKM |
| Weight [kg] | 6.2 |
If you are in need of additional products, please visit our official website for a more comprehensive selection.
Shop – hydraulics-worldwide.
Details
| Weight | 6.2 kg |
|---|---|
| Dimensions | 30 × 10 × 15 cm |
